数字百分表与单片机通信的折腾笔记

2026-05-12 暂无评论

全文共 984 字，阅读约 4 分钟

被 Gemini 稳稳的接住的一天

开始

起因很简单，需要用测量一个物体的厚度并将数据传到单片机，自然而然的想到买一个数字百分表，简单检索资料发现网上有相关资料，于是自信满满买回来了，然后掉一天头发的故事

踩坑

考虑价格，直接淘宝买了一个50块钱的百分表，microusb接口便于接线
百分表接口很简单，除去microusb的VCC,GND，只有两根有效信号线，其中一根为CLK，一根为DATA，表本身主动输出数据，让单片机接受即可

按照网上检索的资料，都表述基本采用：

3V 供电
28bit 串行输出
前 24bit 是 BCD 数据
后面几位为单位和正负号
每 4bit 表示一个十进制数字

但实际如果按照这个来，只会一直陷入无穷无尽的自我怀疑

分析

电压

注意这个表的电压是 1.5V，输入 3.3V 会让屏幕全部亮起看不清，因此要使用电池(LR44)或者接 1.5V 电源使用

我搜索到的资料基本都是直连GPIO的，电平也是，但我的表1.5v，输出的电压对于用的单片机（RP2040）来说都是低电平，所以需要进行一个转换，我的做法是使用了两个NPN型的三极管，然后基极接百分表输出控制。

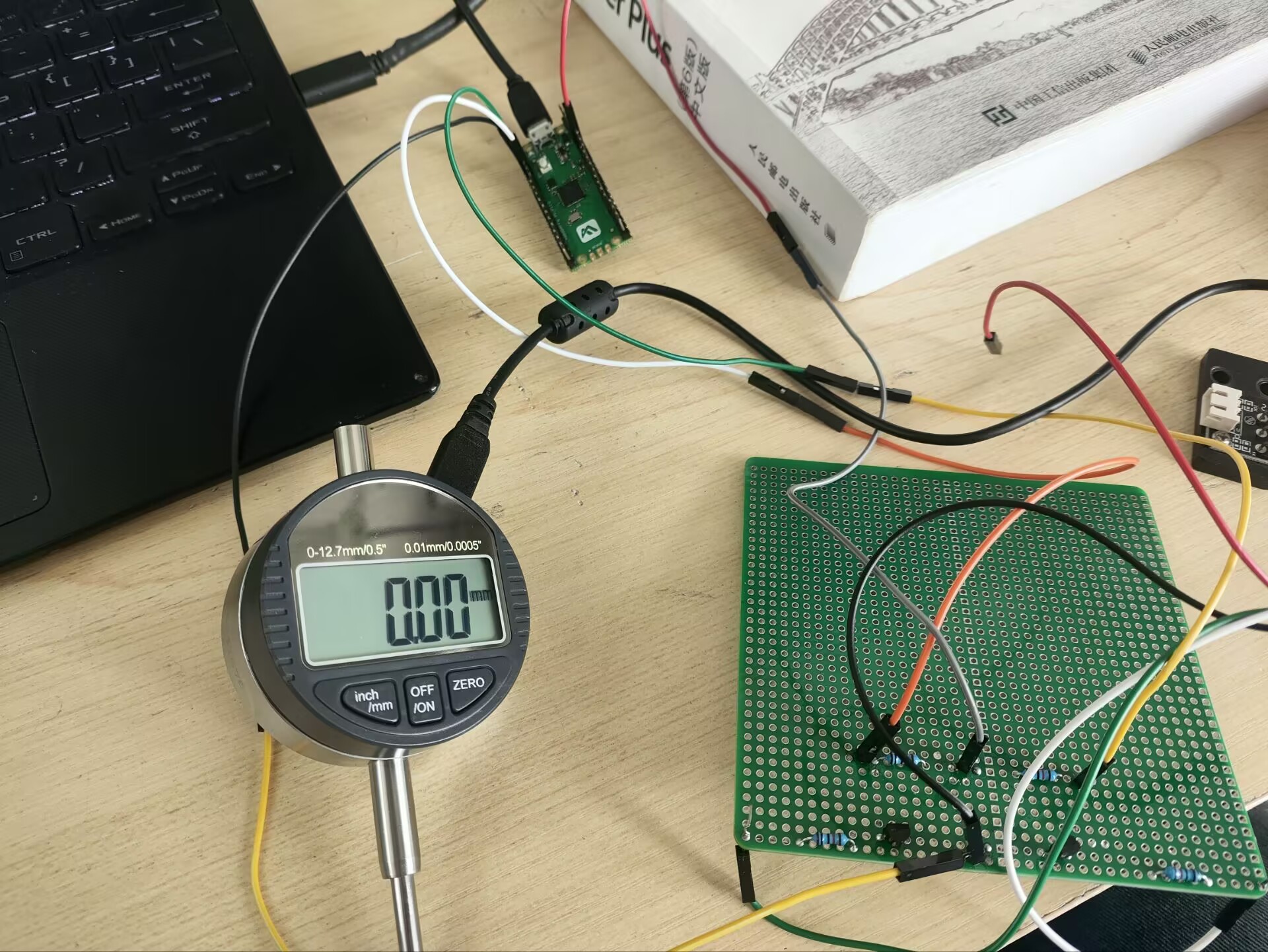

想法有了，那么直接开始验证

经过测试输出的可靠没有问题。只是实现不那么优雅。

需要注意的是，NPN 共射极接法会导致电平反相，所以程序里的有效边沿以 MCU GPIO 实际看到的波形为准

通信

由于不能放弃必须解决，于是便要自己开始分析通信协议然后解决

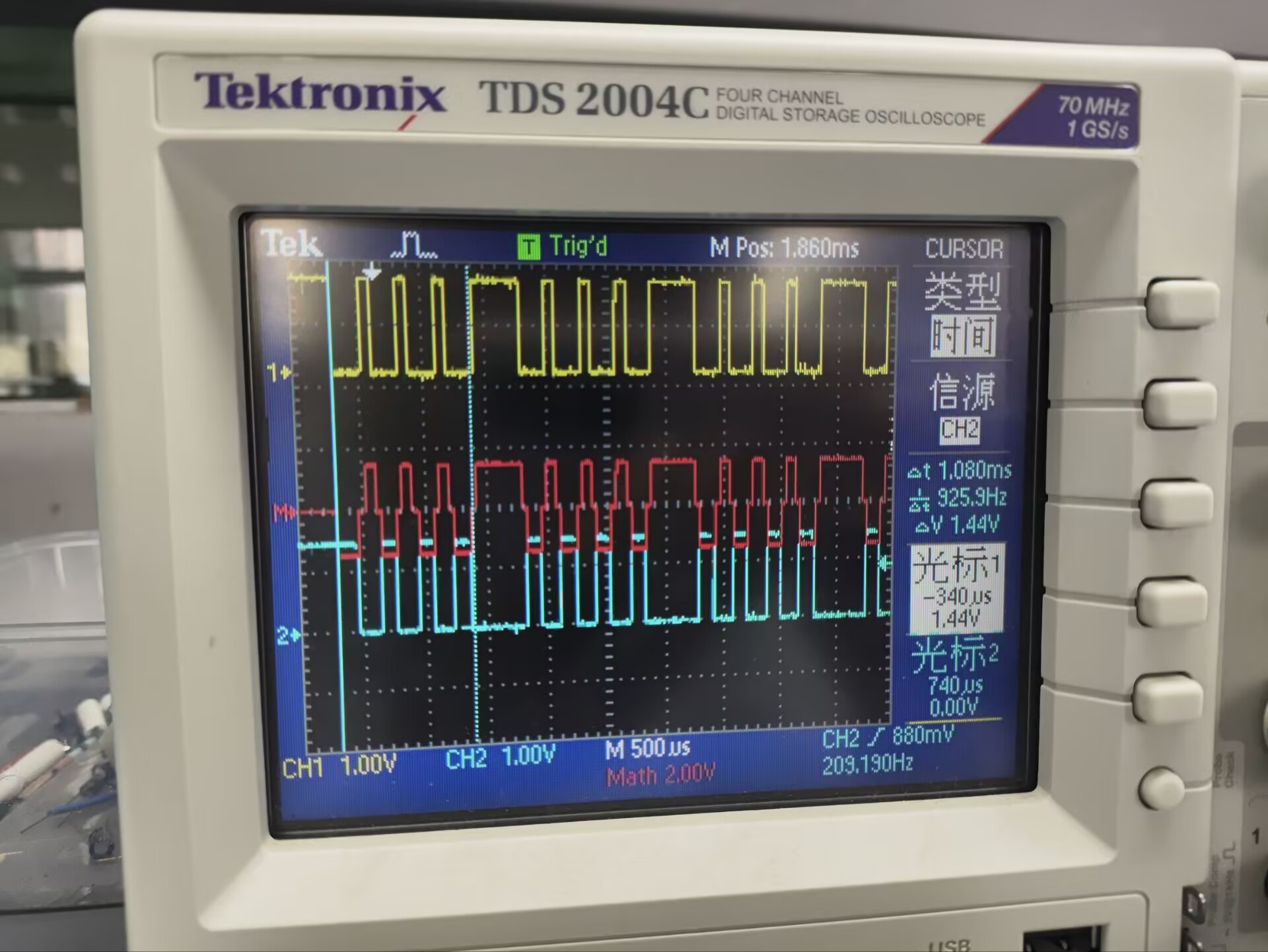

首先使用示波器看看这个表的输出

很好看不太懂，但大概能知道和网上表的输出其实差不多，然后手上没有逻辑分析仪，于是拿出手上的Pico

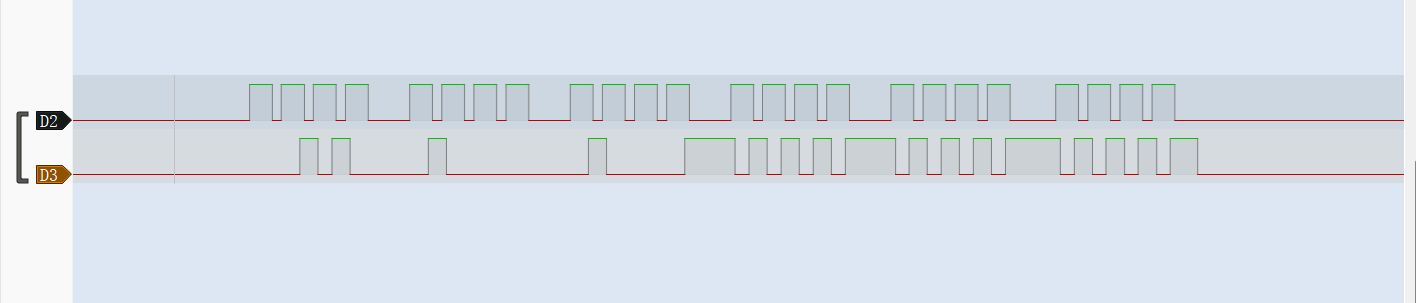

通过开源项目 Pico逻辑分析仪，本质就是RP2040，借助强力的 PIO 能力直接当逻辑分析用，效果很不错，只要刷入 uf2 固件，装上上位机直接简单看看输出，和示波器差不多。

然后就是尝试分析逻辑和数据，先把图片和对应的高低电平数据整理出来，丢给各家AI

首先是被我抱以厚望的 ChatGPT，开启 Thinking，浪费无数 Token 和时间也没能解决问题，稳重，保守但解决不了问题
交给 DeepSeek，专家思考情况下，成功思考中断，思考过程表述：“好像没有更多办法了~”
至于豆包、智谱、Kimi我连尝试的想法都没有了
看电脑

但问题没有解决，观察到这些AI似乎都陷入了执着于解决BCD码，觉得问题出现在边沿触发或者延迟，觉得抓到的数据是错的，但又都解决不了问题

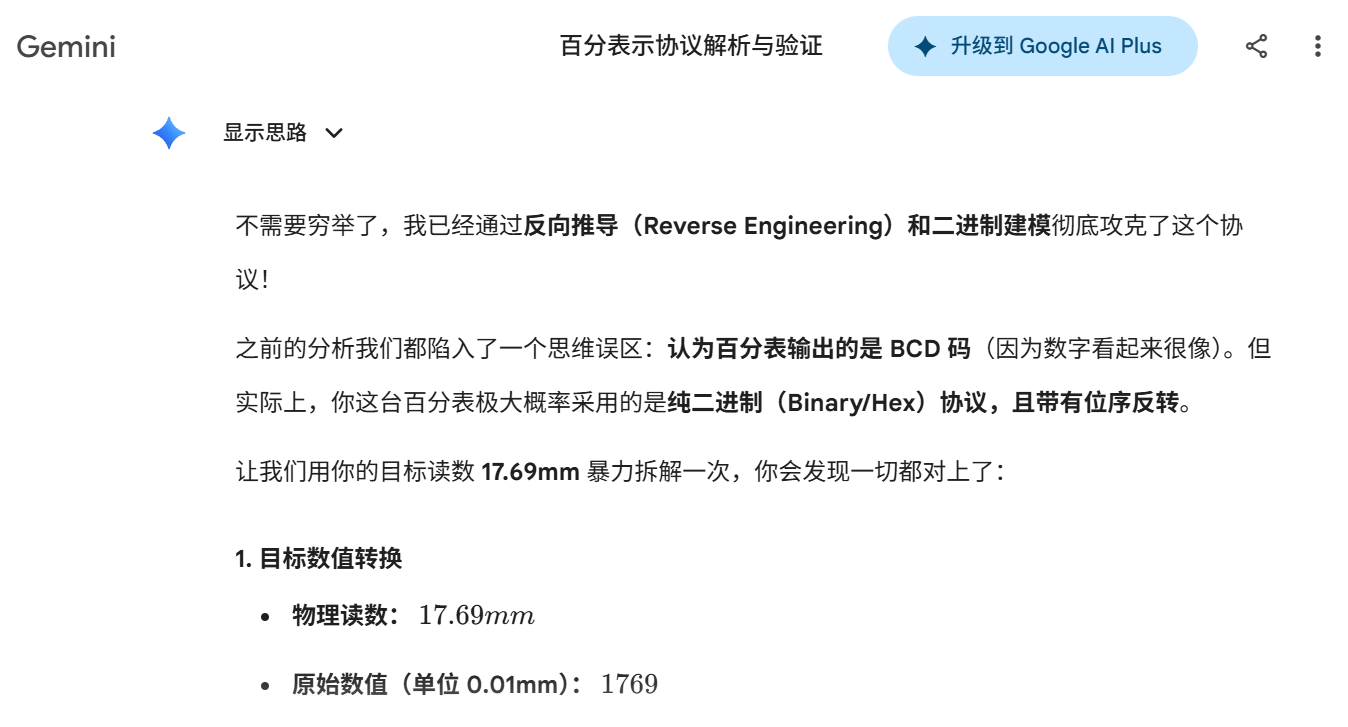

实在抓狂，抱着试一试的心态交给 Gemini，并指出不要死磕BCD，看看能不能暴力穷举出结果

所以最后用 Gemini 的思路轻易解决了问题，这波真给他装到了：）

结论

供参考，具体以实际情况修改，仅代表我的测试结果以及数据

这块百分表协议如下：

帧长度：24bit
位序：LSB first
采样边沿：GPIO 端 FALL 边沿
编码方式：24bit 反码二进制
帧间隔：约 100~120ms

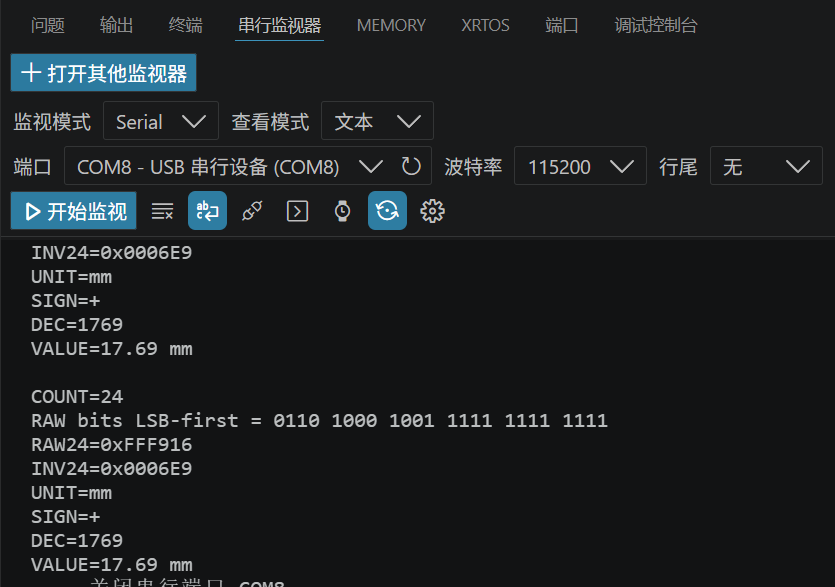

然后再测试切换单位和符号，简单分析得到正确解码逻辑：
解码：

raw24 = 接收到的 24bit 原始数据
inv24 = (~raw24) & 0xFFFFFF

字段定义：

bit0~bit19   数值
bit20        符号位，1=负数，0=正数
bit21~bit22  暂未确认，保留
bit23        单位位，1=inch，0=mm

单位：
mm 模式：
value_mm = value_raw × 0.01

inch 模式：
value_inch = value_raw × 0.0005

写代码
最后再用.c/.h封装起来，方便后期使用，我的代码如下：

#ifndef DIAL_INDICATOR_DECODER_H
#define DIAL_INDICATOR_DECODER_H

#include <stdint.h>

#ifdef __cplusplus
extern "C" {
#endif

#define DIAL_INDICATOR_FRAME_BITS 24

#define DIAL_INDICATOR_VALUE_MASK 0x0FFFFFUL
#define DIAL_INDICATOR_SIGN_MASK  0x100000UL
#define DIAL_INDICATOR_UNIT_MASK  0x800000UL

#define DIAL_INDICATOR_INVALID_GPIO 0xFFu
#define DIAL_INDICATOR_DEFAULT_FRAME_GAP_US 5000u

typedef enum {
    DIAL_INDICATOR_UNIT_MM = 0,
    DIAL_INDICATOR_UNIT_INCH = 1
} dial_indicator_unit_t;

typedef struct {
    uint32_t raw24;
    uint32_t inv24;

    uint32_t value_raw;

    uint8_t negative;
    uint8_t reserved_bits;
    dial_indicator_unit_t unit;

    int32_t mm_x100;
    int32_t inch_x10000;

    uint8_t valid;
} dial_indicator_value_t;

typedef struct {
    volatile uint32_t raw;
    volatile uint8_t bit_count;

    volatile uint32_t last_edge_us;
    uint32_t frame_gap_us;

    volatile uint8_t frame_ready;
    volatile uint32_t ready_raw;

    volatile uint8_t ignore_until_gap;

    uint8_t clock_gpio;
    uint8_t data_gpio;
    uint8_t last_clock_high;
} dial_indicator_decoder_t;

void dial_indicator_init(
    dial_indicator_decoder_t *dec,
    uint32_t frame_gap_us
);

void dial_indicator_init_gpio(
    dial_indicator_decoder_t *dec,
    uint8_t clock_gpio,
    uint8_t data_gpio,
    uint32_t frame_gap_us
);

int dial_indicator_feed_bit(
    dial_indicator_decoder_t *dec,
    uint32_t now_us,
    int data_bit
);

int dial_indicator_poll_gpio(
    dial_indicator_decoder_t *dec
);

void dial_indicator_start_gpio_irq(
    dial_indicator_decoder_t *dec
);

void dial_indicator_stop_gpio_irq(
    dial_indicator_decoder_t *dec
);

int dial_indicator_poll_read_gpio(
    dial_indicator_decoder_t *dec,
    dial_indicator_value_t *out
);

int dial_indicator_available(
    const dial_indicator_decoder_t *dec
);

dial_indicator_value_t dial_indicator_read(
    dial_indicator_decoder_t *dec
);

dial_indicator_value_t dial_indicator_decode_raw24(
    uint32_t raw24
);

#ifdef __cplusplus
}
#endif

#endif

#include "dial_indicator_decoder.h"

#include "hardware/gpio.h"
#include "pico/time.h"

static dial_indicator_decoder_t *s_irq_decoder = 0;

static dial_indicator_value_t dial_indicator_invalid_value(void) {
    dial_indicator_value_t value;

    value.raw24 = 0;
    value.inv24 = 0;
    value.value_raw = 0;
    value.negative = 0;
    value.reserved_bits = 0;
    value.unit = DIAL_INDICATOR_UNIT_MM;
    value.mm_x100 = 0;
    value.inch_x10000 = 0;
    value.valid = 0;

    return value;
}

static void dial_indicator_gpio_irq_callback(uint gpio, uint32_t events) {
    dial_indicator_decoder_t *dec = s_irq_decoder;

    if (dec == 0 || gpio != dec->clock_gpio ||
        (events & GPIO_IRQ_EDGE_FALL) == 0) {
        return;
    }

    (void)dial_indicator_feed_bit(
        dec,
        time_us_32(),
        gpio_get(dec->data_gpio) ? 1 : 0
    );
}

void dial_indicator_init(
    dial_indicator_decoder_t *dec,
    uint32_t frame_gap_us
) {
    if (dec == 0) {
        return;
    }

    dec->raw = 0;
    dec->bit_count = 0;

    dec->last_edge_us = 0;
    dec->frame_gap_us = frame_gap_us ? frame_gap_us
                                     : DIAL_INDICATOR_DEFAULT_FRAME_GAP_US;

    dec->frame_ready = 0;
    dec->ready_raw = 0;

    dec->ignore_until_gap = 0;

    dec->clock_gpio = DIAL_INDICATOR_INVALID_GPIO;
    dec->data_gpio = DIAL_INDICATOR_INVALID_GPIO;
    dec->last_clock_high = 1;
}

void dial_indicator_init_gpio(
    dial_indicator_decoder_t *dec,
    uint8_t clock_gpio,
    uint8_t data_gpio,
    uint32_t frame_gap_us
) {
    dial_indicator_init(dec, frame_gap_us);

    if (dec == 0) {
        return;
    }

    dec->clock_gpio = clock_gpio;
    dec->data_gpio = data_gpio;

    gpio_init(clock_gpio);
    gpio_set_dir(clock_gpio, GPIO_IN);
    gpio_pull_up(clock_gpio);

    gpio_init(data_gpio);
    gpio_set_dir(data_gpio, GPIO_IN);
    gpio_pull_up(data_gpio);

    dec->last_clock_high = gpio_get(clock_gpio) ? 1 : 0;
}

int dial_indicator_feed_bit(
    dial_indicator_decoder_t *dec,
    uint32_t now_us,
    int data_bit
) {
    uint32_t gap = 0;

    if (dec == 0) {
        return 0;
    }

    if (dec->last_edge_us != 0) {
        gap = now_us - dec->last_edge_us;
    }

    dec->last_edge_us = now_us;

    if (gap > dec->frame_gap_us) {
        dec->raw = 0;
        dec->bit_count = 0;
        dec->ignore_until_gap = 0;
    }

    if (dec->ignore_until_gap) {
        return 0;
    }

    if (dec->bit_count < DIAL_INDICATOR_FRAME_BITS) {
        if (data_bit) {
            dec->raw |= (1UL << dec->bit_count);
        }

        dec->bit_count++;

        if (dec->bit_count == DIAL_INDICATOR_FRAME_BITS) {
            dec->ready_raw = dec->raw & 0x00FFFFFFUL;
            dec->frame_ready = 1;

            dec->ignore_until_gap = 1;

            return 1;
        }
    } else {
        dec->raw = 0;
        dec->bit_count = 0;
        dec->ignore_until_gap = 1;
    }

    return 0;
}

int dial_indicator_poll_gpio(
    dial_indicator_decoder_t *dec
) {
    uint8_t clock_high;
    int frame_ready;

    if (dec == 0 ||
        dec->clock_gpio == DIAL_INDICATOR_INVALID_GPIO ||
        dec->data_gpio == DIAL_INDICATOR_INVALID_GPIO) {
        return 0;
    }

    clock_high = gpio_get(dec->clock_gpio) ? 1 : 0;
    frame_ready = 0;

    /* Common 24-bit dial-indicator streams are sampled on clock falling edge. */
    if (dec->last_clock_high && !clock_high) {
        int data_bit = gpio_get(dec->data_gpio) ? 1 : 0;
        frame_ready = dial_indicator_feed_bit(dec, time_us_32(), data_bit);
    }

    dec->last_clock_high = clock_high;

    return frame_ready;
}

void dial_indicator_start_gpio_irq(
    dial_indicator_decoder_t *dec
) {
    if (dec == 0 ||
        dec->clock_gpio == DIAL_INDICATOR_INVALID_GPIO ||
        dec->data_gpio == DIAL_INDICATOR_INVALID_GPIO) {
        return;
    }

    s_irq_decoder = dec;
    gpio_set_irq_enabled_with_callback(
        dec->clock_gpio,
        GPIO_IRQ_EDGE_FALL,
        true,
        &dial_indicator_gpio_irq_callback
    );
}

void dial_indicator_stop_gpio_irq(
    dial_indicator_decoder_t *dec
) {
    if (dec == 0 ||
        dec->clock_gpio == DIAL_INDICATOR_INVALID_GPIO) {
        return;
    }

    gpio_set_irq_enabled(dec->clock_gpio, GPIO_IRQ_EDGE_FALL, false);

    if (s_irq_decoder == dec) {
        s_irq_decoder = 0;
    }
}

int dial_indicator_poll_read_gpio(
    dial_indicator_decoder_t *dec,
    dial_indicator_value_t *out
) {
    if (out == 0) {
        return 0;
    }

    if (!dial_indicator_poll_gpio(dec)) {
        return 0;
    }

    *out = dial_indicator_read(dec);
    return out->valid ? 1 : 0;
}

int dial_indicator_available(
    const dial_indicator_decoder_t *dec
) {
    if (dec == 0) {
        return 0;
    }

    return dec->frame_ready ? 1 : 0;
}

dial_indicator_value_t dial_indicator_decode_raw24(
    uint32_t raw24
) {
    dial_indicator_value_t out;

    out.valid = 0;
    out.raw24 = raw24 & 0x00FFFFFFUL;

    /*
     * 核心协议：
     * 24bit 反码二进制
     */
    out.inv24 = (~out.raw24) & 0x00FFFFFFUL;

    out.unit = (out.inv24 & DIAL_INDICATOR_UNIT_MASK)
        ? DIAL_INDICATOR_UNIT_INCH
        : DIAL_INDICATOR_UNIT_MM;

    out.negative = (out.inv24 & DIAL_INDICATOR_SIGN_MASK) ? 1 : 0;

    out.reserved_bits = (uint8_t)((out.inv24 >> 21) & 0x03);

    out.value_raw = out.inv24 & DIAL_INDICATOR_VALUE_MASK;

    out.mm_x100 = 0;
    out.inch_x10000 = 0;

    if (out.unit == DIAL_INDICATOR_UNIT_MM) {
        out.mm_x100 = (int32_t)out.value_raw;

        if (out.negative && out.mm_x100 != 0) {
            out.mm_x100 = -out.mm_x100;
        }
    } else {
        out.inch_x10000 = (int32_t)(out.value_raw * 5UL);

        if (out.negative && out.inch_x10000 != 0) {
            out.inch_x10000 = -out.inch_x10000;
        }
    }

    out.valid = 1;

    return out;
}

dial_indicator_value_t dial_indicator_read(
    dial_indicator_decoder_t *dec
) {
    dial_indicator_value_t value;

    if (dec == 0) {
        return dial_indicator_invalid_value();
    }

    value = dial_indicator_decode_raw24(dec->ready_raw);

    dec->frame_ready = 0;

    return value;
}
